Product Name:DOCKLINE

Product Description:
The combination of high-grade marine nylon, special torque-balanced construction, and a unique stabilization process produces a long-wearing, easy-to-handle line that resists kinking. Our Double Braid line offers controlled elongation and excellent abrasi

Features:
Excellent energy absorption
Good abrasion resistance
Supple
Applications:
Dock Lines
Anchor Lines
Mooring Lines
Colors Available:

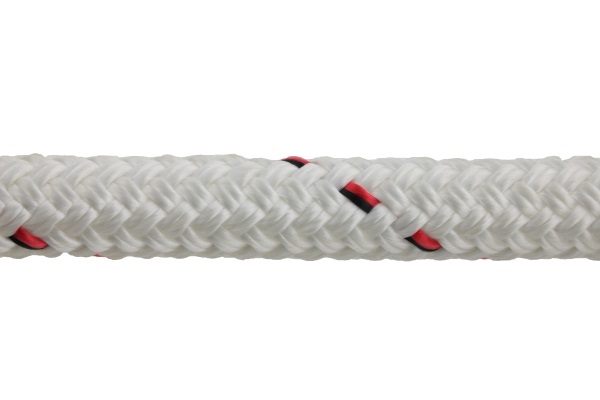

White

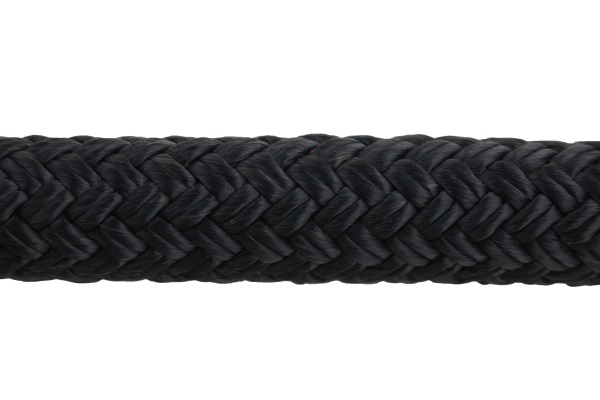

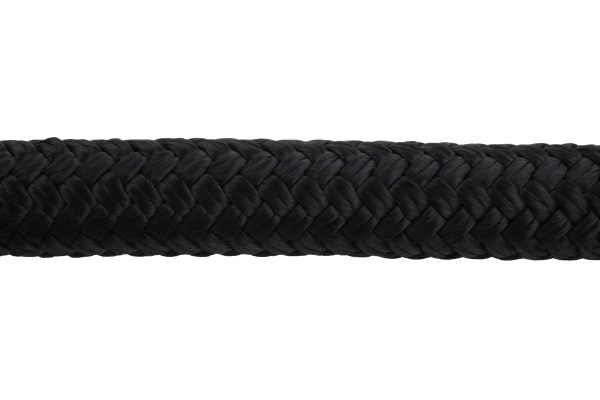

Black
Lengths Available:
600'
400' for 3"dia.
350' for 3-1/4"dia.

Size Weight Tensile
lbs/100' g/m lbs kg
 3/16"  0.9  13.4  1,200  545
 1/4"  1.6  23.8  2,100  955
 5/16"  2.5  37.2  3,000  1,360
 3/8"  4.0  59.5  4,800  2,175
 7/16"  4.9  72.9  6,700  3,040
 1/2"  6.3  93.7  8,000  3,630
 9/16"  9.2  136.2  12,300  5,580
 5/8"  10.0  148.8  13,100  5,945
 3/4"  14.3  212.8  20,500  9,300
 7/8"  18.0  267.8  24,750  11,230
 1"  19.4  288.7  33,000  14,975
 1-1/8"  26.0  386.9  43,000  19,510
 1-1/4"  34.0  505.9  58,000  26,315
 1-5/16"  40.0  595.2  65,000  29,490





Sunlight/UV:
Very little degradation from sunlight. Can be used outside over long term if inspected regularly.

Chemicals:
Nylon will degrade with strong oxidizing agents, mineral acids, and 90% formic acid. May discolor when exposed to high levels of carbon dioxide.

Heat:
Nylon melts at 460°F with progressive strength loss above 300°F.

Dielectrics:
Good resistance to the passage of electrical current. However, dirt, surface contaminants, water entrapment, and the like can significantly affect dielectric properties. Extreme caution should be exercised any time a rope is in the proximity of live circuits.

Sheaves:
Recommended sheave diameter to rope diameter is 8:1.
