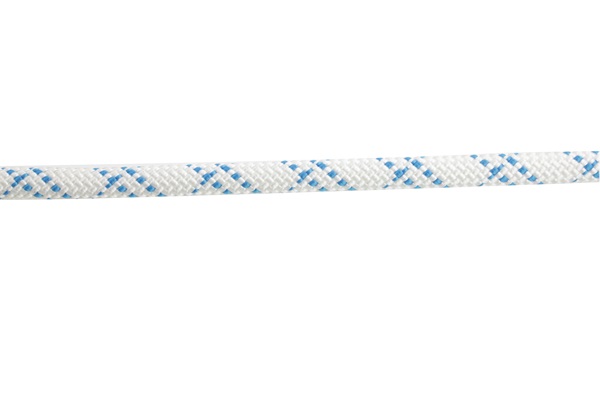

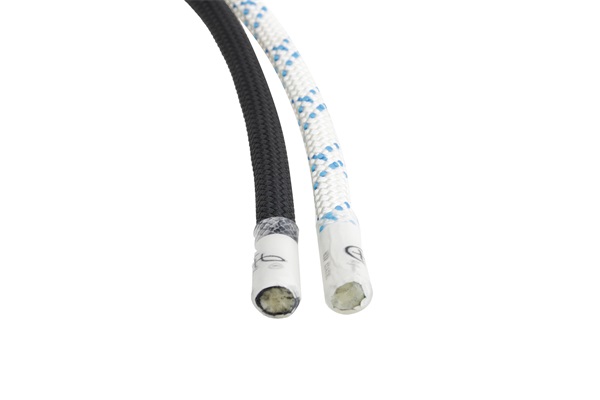

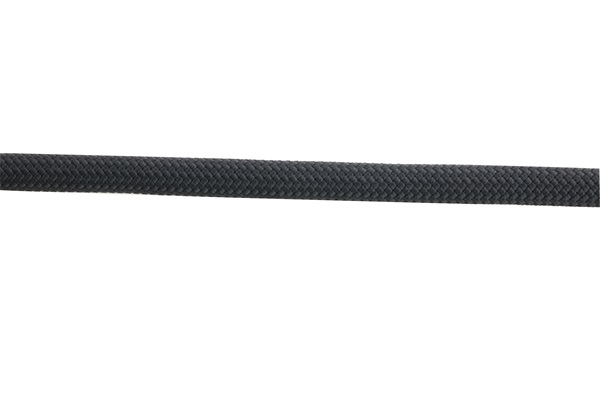

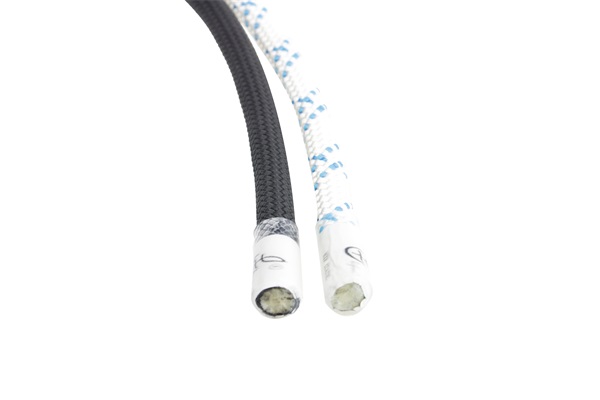

Product Name: STATIC ROPE

Features:
5/16" - UL Classified to NFPA 1983:2006 for Escape Rope.
3/8" & 7/16" - UL Classified to NFPA 1983:2006 for Light Use
1/2" & 5/8" - UL Classified to NFPA 1983:2006 for General Use
Applications:
Vertical Lifeline
Rappelling
Caving
Canyoneering
Work Positioning
High Lines
Fall Protection
Climbing
SRT
Aborist
Climbing Gym (top roping)
Ropes Courses
Colors Available:

White
Red
Blue
Black
Olive Drab
Orange
Safety Green
Lengths Available:

150'
200'
300'
600'

 size

weight

Tensile

Static Elongation %

Classification

lbs/100'

g/m

lbs

kg

5/16''

3.6

53.6

4,500

2,043

4.1 @ 1.35 kN (300 lbf)

7.7 @ 2.70 kN (600 lbf)

11.5 @ 4.40 kN (1000 lbf)

Escape Rope

3/8''

4.6

68.4

6,000

2,724

3.6 @ 1.35 kN (300 lbf)

6.5 @ 2.70 kN (600 lbf)

9.5 @ 4.40 kN (1000 lbf)

Light Use

7/16''

6.2

92.3

8,000

3,632

2.9 @ 1.35 kN (300 lbf)

5.1 @ 2.70 kN (600 lbf)

8.0 @ 4.40 kN (1000 lbf)

Light Use

1/2''

8.0

119.0

10,000

4,540

2.7 @ 1.35 kN (300 lbf)

4.6 @ 2.70 kN (600 lbf)

6.8 @ 4.40 kN (1000 lbf)

General Use

5/8''

10.3

153.3

11,000

4,994

2.0 @ 1.35 kN (300 lbf)

3.6 @ 2.70 kN (600 lbf)

5.4 @ 4.40 kN (1000 lbf)

General Use

1Sunlight/UV:
Very little degradation from sunlight. Can be used outside over long term if inspected regularly.

Chemicals:
Nylon will degrade with strong oxidizing agents, mineral acids, and 90% formic acid. May discolor when exposed to high levels of carbon dioxide. Polyester has good resistance to most chemicals, except 95% sulfuric acid and strong alkalines at boil.

Heat:
Nylon melts at 460°F with progressive strength loss above 300°F. Polyester melts at 480°F with progressive strength loss above 300°F.

Dielectrics:
Good resistance to the passage of electrical current. However, dirt, surface contaminants, water entrapment, and the like can significantly affect dielectric properties. Extreme caution should be exercised any time a rope is in the proximity of live circuits.

Sheaves:
Recommended sheave diameter to rope diameter is 8:1.

Working Loads:
No blanket safe working load (SWL) recommendations can be made for any line because SWL's must be calculated based on application, conditions of use, and potential danger to personnel among other considerations. It is recommended that the end user establish working loads and safety factors based on best practices established by the end user's industry; by professional judgment and personal experience; and after thorough assessment of all risks. The SWL is a guideline for the use of a rope in good condition for non-critical applications and should be reduced where life, limb, or valuable property is involved, or in cases of exceptional service such as shock loading, sustained loading, severe vibration, etc. The Cordage Institute specifies that the SWL of a rope shall be determined by dividing the Minimum Tensile Strength of the rope by a safety factor. The safety factor ranges from 5 to 12 for non-critical uses and is typically set at 15 for life lines.

Splicing Instructions:
Not Spliceable
